But Frank Szczepanski, a telescope maker in my home town of
Eugene, Oregon, had built an 8-inch binocular that knocked my socks off
every time I looked through it, and he said it was relatively easy to
build and to use. Just for grins, he made another one out of a pair of
4" mirrors he got from Surplus Shed. That one went together in about a
week, and it worked beautifully, too. Admittedly Frank is a guy who can put together a scope in an
afternoon (I am not exaggerating), but his success encouraged me to give
it a try. My circle of telescope-making friends, the Scopewerks, egged
me on, thinking, I expect, that I would either fail in a spectacular but
educational way or that I would succeed in an unconventional but
mundane, seat-of-the-pants sort of way. That does seem to be my
trademark, so I went into this project with that in mind. First off, I needed to make both mirrors the same focal length, so I shortened the second one's focal length until it was within 3/4" of the first. (I could have gotten it closer, but I naively thought it would shorten by that much in polishing and parabolizing. Not so! As any mirror maker more experienced than me will tell you.) They wound up 57.9" for the first one (f/4.63) and 58.6" for the second one (f/4.69). That's a 1.2% difference, well within the 3% difference that common wisdom says your eyes can compensate for, so I was okay. That done, I started thinking about the design of the scope.
All the horror stories I'd heard about binocular scopes centered around
keeping the images merged. It was apparently really tough to keep the
scope rigid enough that both optical trains would point at the same spot
in the sky from zenith to horizon. The designs I'd seen tended to be of
two types: two telescopes strapped together side-by-side or two optical
trains in a framework that looked a little like a truncated Eiffel
Tower. I thought about that, and about my friends' (and my own)
expectation that I would come up with something completely new, and
decided to do something completely conventional. I decided to think inside
the box for a change. A big, honkin' box. Two of them, in fact, one on
top and one on the bottom. I'd connect them with eight trusses, two to a
side, making in effect eight triangles to provide stiffness
between the two boxes. If that bugger flexed more than a few angstroms,
I would eat it. |
That still left me with a lot of
decisions to make. In order to align both optical paths, I would need to
be able to adjust the aim of at least one, if not both optical trains.
Again, the 'net was full of cautionary tales and people proclaiming that
you must do thus and so or you will be doomed, doomed to
fail. The most reasonable advice that I could find seemed to be that I
should make the primary mirror mounts adjustable horizontally as well as
tiltable. A horizontal motion combined with a little tilt to both the
primary and the secondary would move the optical train's aim while
keeping the mirrors collimated. In order to do that I had to make floating mirror cells. I
came up with all sorts of Rube-Goldberg ideas, but finally settled on
simplicity itself: make the collimation screws run all the way through
the mirror platform to rest on the bottom of the mirror box, and use
springs to pull the mirror platforms down so they wouldn't fall out when
the scope was tilted toward the horizon. The lateral motion then became
as easy as putting in four screws, two for each mirror, that could push
the mirrors sideways. They double as the mirrors' side supports, which
should be 90 degrees apart from one another anyway. I can move each
mirror an inch or so in any direction; way more than necessary. The mirrors are full-thickness pyrex, so I only need three
points of support. That means the "cells" (if you want to be generous
and call them that) are just plywood triangles with cork pads for the
mirrors to rest on. I've got clamps that reach up over the top to keep
them from falling out. I put metal plates underneath the collimation screws so they
wouldn't dig into the bottom of the box. The metal was shiny, so I
covered it with construction paper disks. They don't look all that black

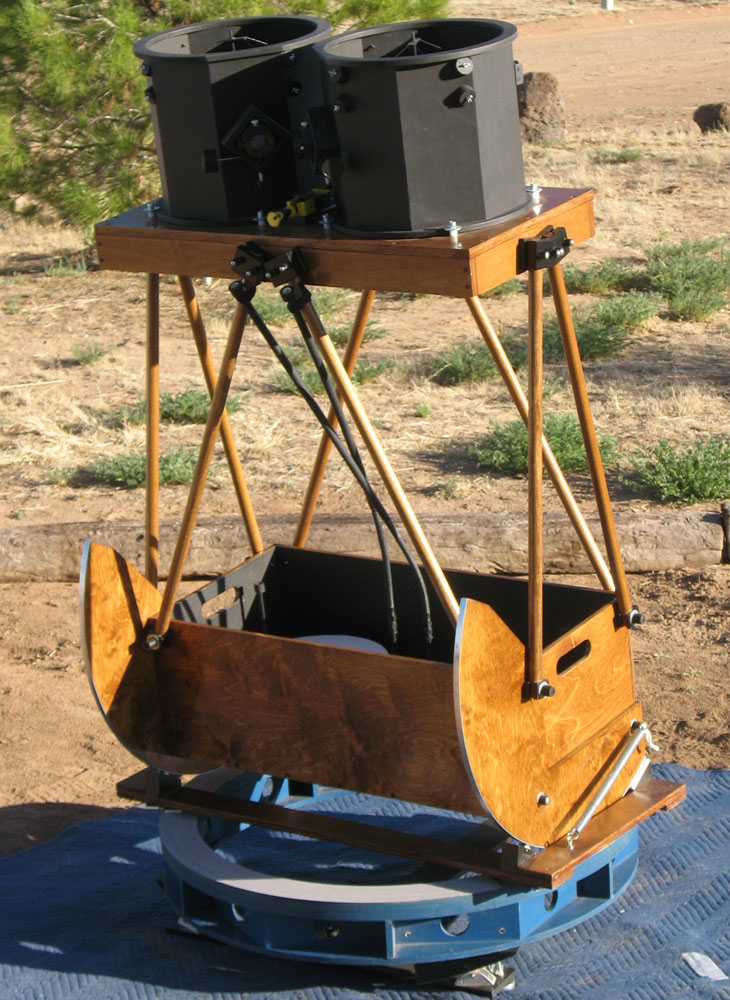

in the photo, but they're plenty dark at night. The collimation adjustment rods are just all-thread. They
stick up a ways so I can reach them easily when I'm merging the images.
(More on that below.) I made the right ones taller than the left because
I only use one mirror to merge the images. I leave the left one alone so
that optical train stays collimated and becomes the reference train for
the other one. (Otherwise I could wind up moving both optical paths way
out of collimation if I wound up chasing a phantom sweet spot on a bad
merging day.) |
That
left me with one more major decision: How was I going to change the
interpupillary distance? People's eyes aren't all the same distance
apart, so you need to be able to move the eyepieces closer together or
farther apart to account for that. With hand-held binoculars, you just
twist them together or apart, but I figured that might be a little
difficult to do with two 12.5" scopes. That left me with two choices:
move the eyepieces sideways with focusers or rotate the secondary cages. Using focusers had its appeal. For one, I could bolt down the secondary cages and keep my rigid framework all the way to the top. But the more I played with it, the more complicated and fussy it seemed. It would require four focusers, two to move the eyepieces sideways and two more aimed vertically to actually focus the images. Worse; every time you changed the interpupillary distance, you would have to refocus. And you would have to refocus a long ways. Plus all four focusers would have to be rigid as rocks. Any flex there would be just as bad as flex in a moveable secondary cage. Rotating the secondary cages began to look like the better option. I had already come up with a design I liked for my 12.5" trackball, and one of its features was a nice round bottom ring. I had made that one out of lightweight foam to save weight, but I wasn't worried about weight for this scope so I decided to make its cages out of plywood. I used 1/2" Baltic Birch for the rings and 1/8" doorskin for the panels. I cut the rings with a router on an arm pinned to the center, which made them nearly perfect circles. The secondary cages are held onto the top platform with only four bolts each. The bolts have nylon spacers between the wide washers on top and the platform, so the bolts don't pinch the bottom rings of the cages. The cages rest on Delrin pads so they'll slide smoothly. There's a thousandth of an inch or so of play to the cages, but that barely affects collimation or image registration. Your eye compensates way more than they move. The wire spiders give me another neat advantage: I can move the secondary mirrors around in the cages just like I can move the primaries around in their box. I can move them up and down, sideways, and change their tilt just by tightening and loosening various wires. I also have tilt adjustments at the center hub so I don't have to mess up the other adjustments for simple collimation. Notice the flattened faces on the top rings just above the focusers. That's forehead space. I wanted to keep the light path between secondary mirrors and eyepieces as short as possible (to keep the secondaries a reasonable size), so that meant getting the observer's head in as close as possible. |
I ran into one snag early on: the tertiary
mirrors — actually just diagonals like you'd use in a refractor —
wouldn't come close enough together for most people's eyes. The corners
banged into one another! So I did the only logical thing: I ground
off the corners. Now they come together just fine. I made the tertiary mirrors adjustable, too, by putting foam
tape between the mirror plate and the diagonal housing. I can tighten or
loosen the mounting screws and get a little tilt that way; enough to
help collimate the entire system. (I collimate secondaries and primaries
first, then adjust the tertiaries to match.) |

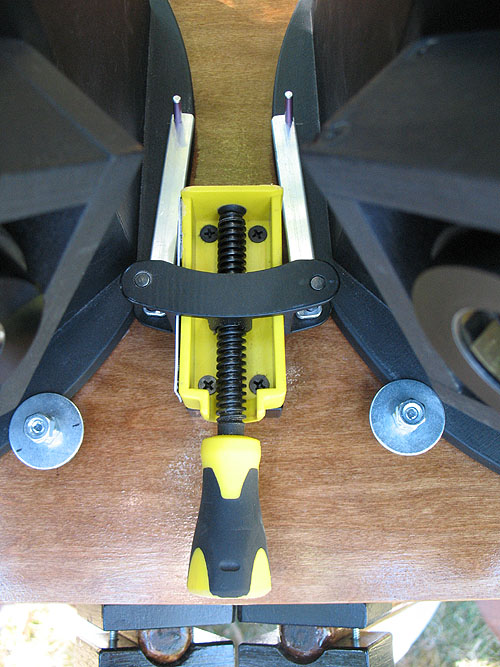

At first I tried just rotating the secondary
cages by hand, but it was way too easy to over- or undershoot, so I
started thinking about how I might be able to make a screw drive for it.
I mentioned my problem to the Scopewerks guys, and a couple of days
later Frank Szczepanski said, "I've found your adjustor." It's a cargo
strap tightener. The far end of it used to have a big coil of cargo
strap on it, and you would tighten the strap by turning the handle and
pulling on the strap anchors. I cut the strap holder off and left the
tightening arms, and connected the arms to the secondary cages with a
couple of aluminum bars and some vertical rods made out of a knitting
needle. The linkages allow the upright rods to get closer together or
farther apart as the cages rotate. It works beautifully! It's intuitive
enough that I can tell people at star parties "This is where you adjust
it for the width of your eyes," and that's all the instruction they need. The focusers are odd-looking little things. I didn't really
want to buy two commercial Crayfords. Besides the expense, they're
heavy. I wasn't worried about weight at first, but as the design
progressed I began to realize that I was creating a monster, so I
decided to see if I could keep the focusers relatively light. I had made a really light one for my 12.5" trackball, but that
design was a little too flexible to hold up under the weight of a
diagonal and an eyepiece. So I decided to think inside the box again.
How about a square set on its side? The bearings could go in two of the
faces, and I could use a stiff wire for an axle. Turns out that worked
pretty well. So well, in fact, that Sky & Telescope magazine ran a
separate article about the design, and I've got a separate web page for
that here.
|
The altitude bearings are half-inch Baltic birch with aluminum
strips for runners. They're removable so the mirror box can sit in the
back seat of a car. I made them a little smaller in diameter than they
should have been for perfect balance, figuring that would reduce the
amount of "fin" sticking out in front. The operator has to stand
inbetween them to view but go around to the back of the scope to use the
finder, and I didn't want to be tripping over the altitude bearings all
the time in the dark. I compensate for the lack of balance with springs
on either side, and that works really well. The ground ring is from the 20" scope that Kathy and I bought
from Mel Bartels. I was glad to see that we could re-use that, saving me
the trouble of building (and storing!) a second one. I stained the wood "Early American" and varnished it with
Varathane. I think the finish is one of the things that surprised me
most about this scope. It turned out pretty! Who knew? I sure didn't
expect that. In a fit of energy not long after, I built an observing chair
and stool to match. They turned out pretty, too. (See top photo. Yeah,
that's glow-in-the-dark tape around the edge of the stool.) |
How it works
|

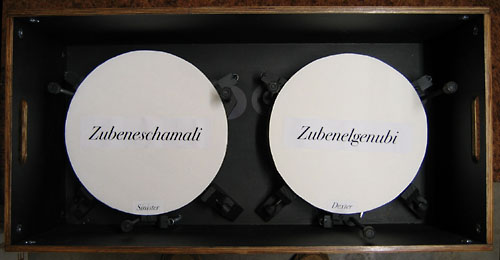

People kept telling me I should name the scope "Gemini" and call one mirror "Castor" and the other one "Pollux." I liked the idea, but my favorite star names are over in Libra instead. I put the names on the mirror covers. |
